GBLC12CI双向，低电容ESD静电保护管DLLC12CI
Bi，PD=350W，VRWM=12V，VBR=13.3V，VC=28.6V，IPP=12A，IR=1uA，CJ=0.8PF
FEATURES

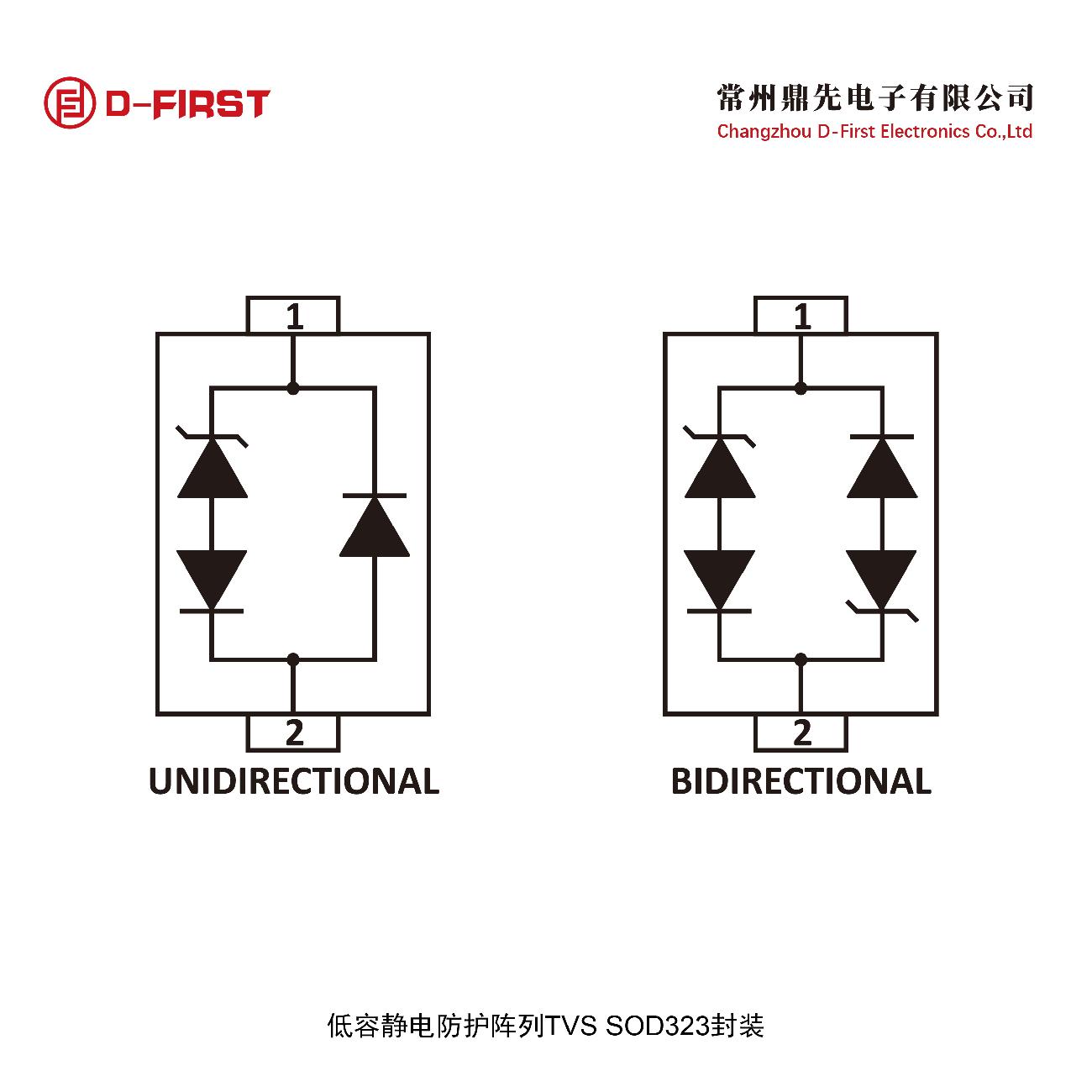

350 Watts Peak Pulse Power per Line (tp=8/20us) Unidirectional & Bidirectional Configurations
Replacement for MLV (0805) Protects One Power or I/O Port ESD Protection > 30 kilovolts ?
Low Clamping Voltage Available in Multiple Voltage Types Ranging From 3V to 24V
Ultra Low Capacitance: 0.8pF Typical
RoHS Compliant
APPLICATIONS
Ethernet - 10/100/1000 Base T
Cellular Phones Handheld - Wireless Systems
Personal Digital Assistant (PDA)
USB Interface

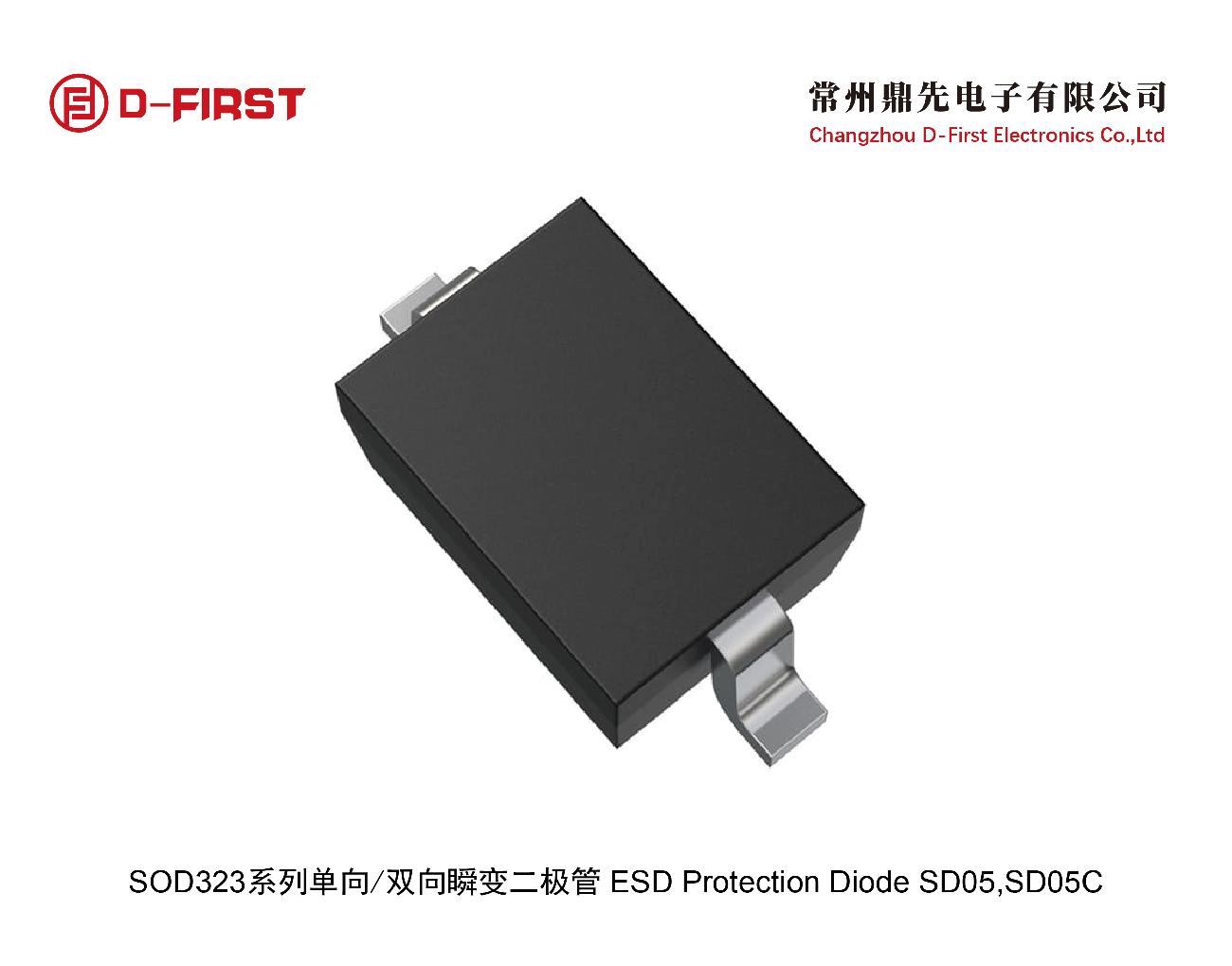

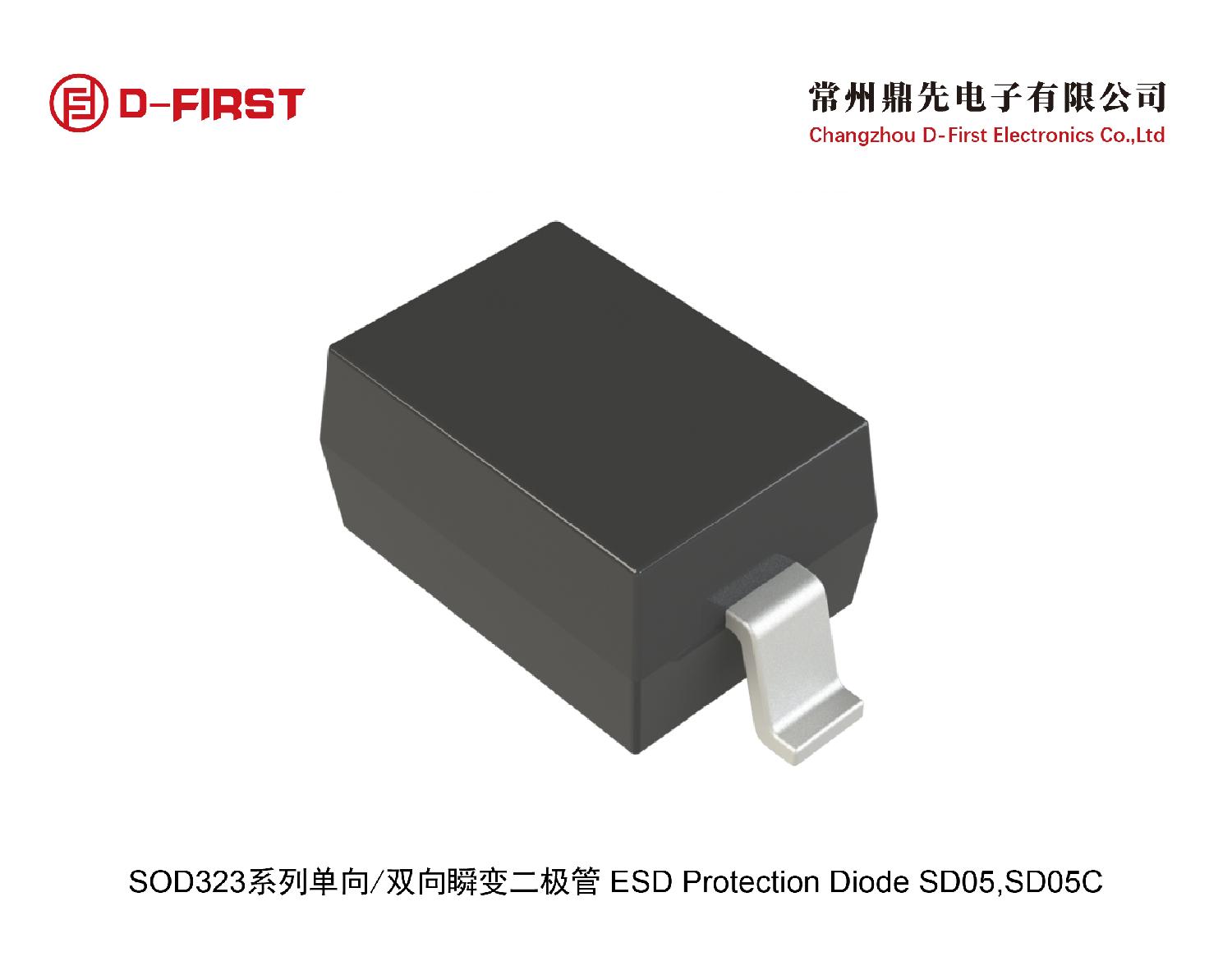

封装:SOD-323包装：3K盘
鼎先电子 ESD TVS工厂
提供测试样品，有安全库存储备，可代工。

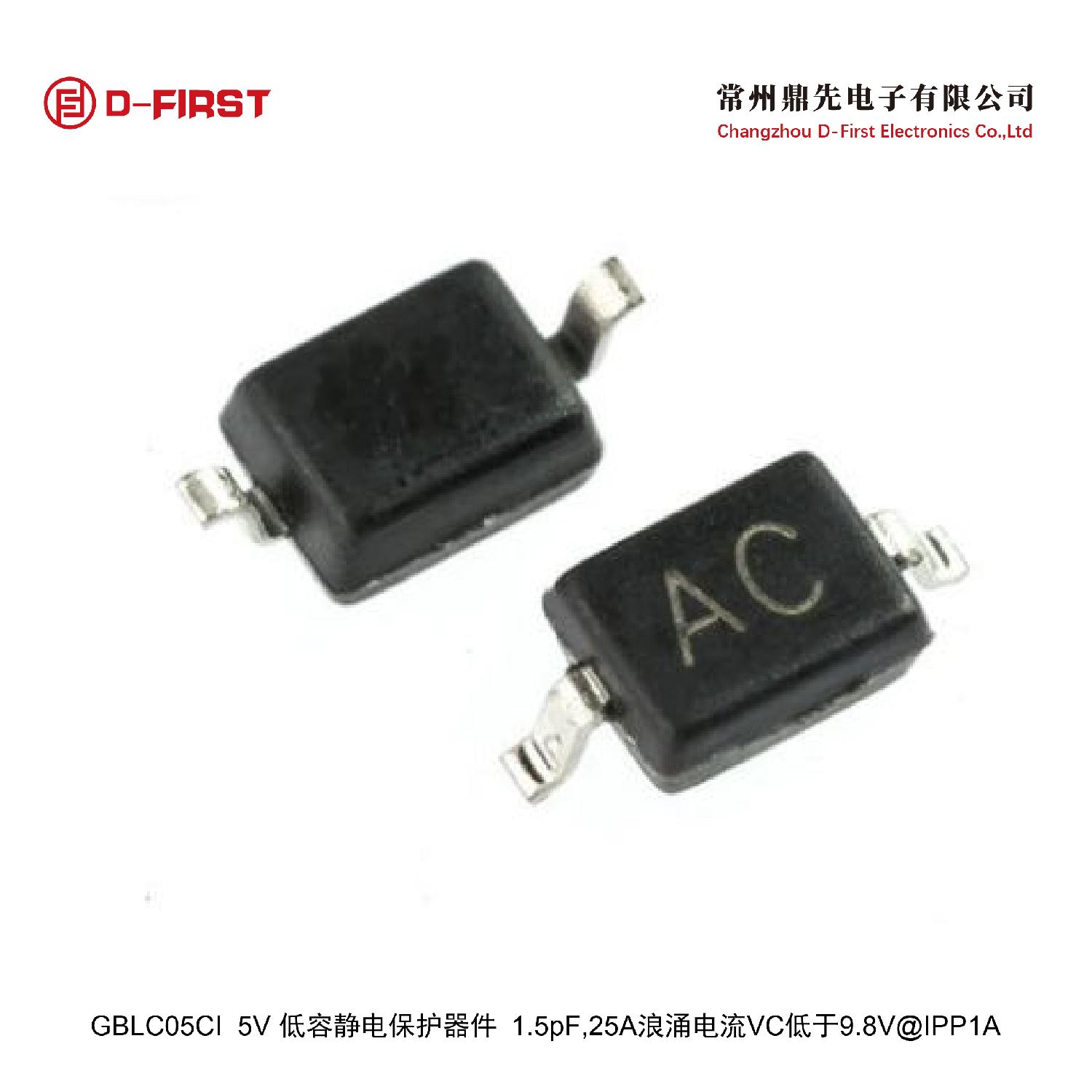

GBLC05I GBLC05CI
GBLC08I GBLC08CI
GBLC12I GBLC12CI
GBLC15I GBLC15CI
GBLC18I GBLC18CI
GBLC24I GBLC24CI
