低电容TVS管ESD静电抑制器RClamp0502B平替DL0502S5
2 通道 25 V 1pF 表面贴装 单向/双向 TVS ESD/CDE 保护 -SC-75 25V Clamp 5A (8/20μs) Ipp Tvs Diode Surface Mount SC-75 (SOT523)

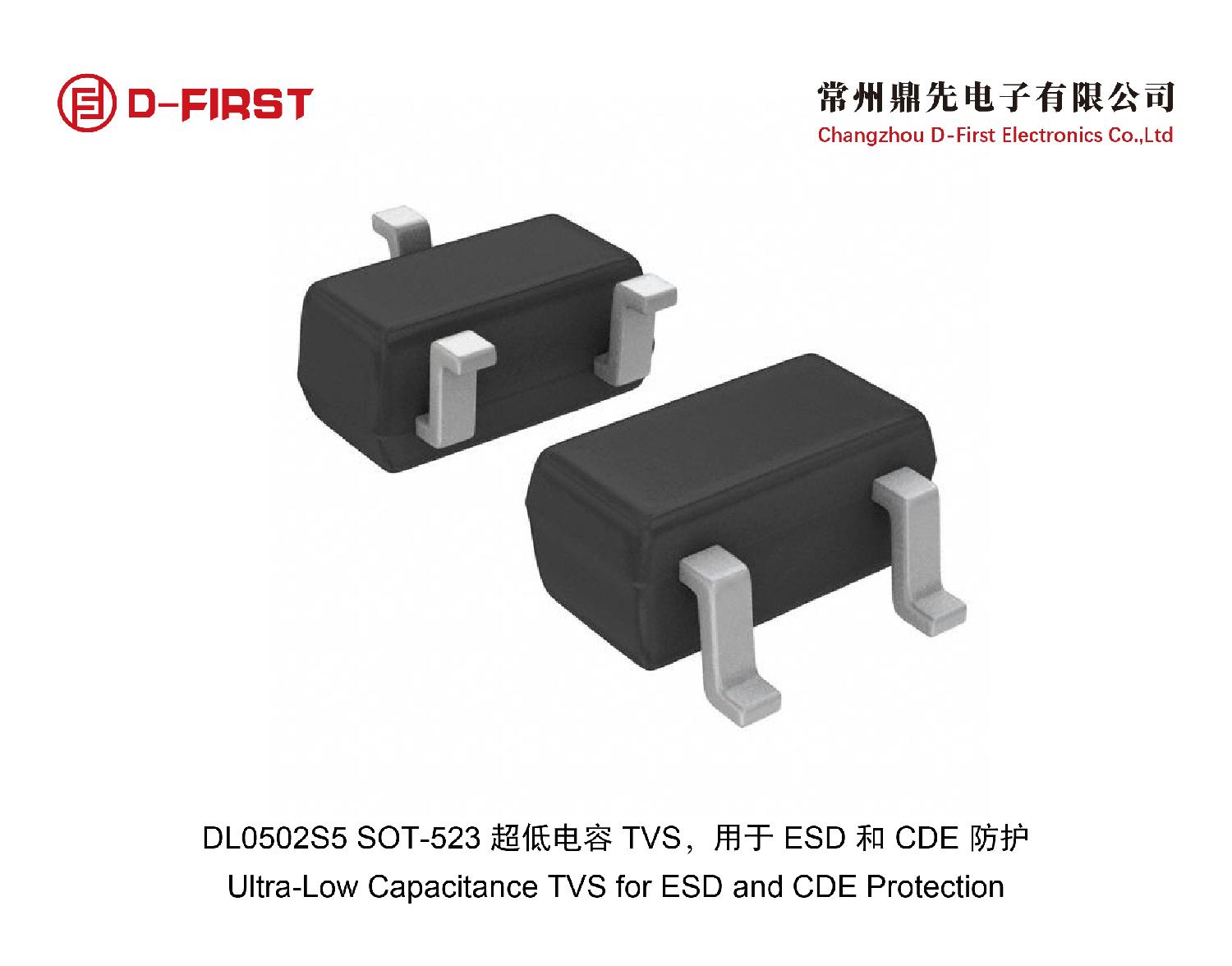

DL0502S5低容TVS，用于 ESD和CDE防护 SOT-523封装
ESD Suppressors / TVS Diodes
2-LINE 5V SC75 RClamp0502B Ultra-Low Capacitance TVS for ESD and CDE Protection
功能
峰值脉冲功率Peak pulse power (tp = 8/20μs): 80W
峰值脉冲电流Peak pulse current (tp = 8/20μs): 5A
静电能力测试
· IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
· IEC 61000-4-4 (EFT) 40A (5/50ns)
工作电压Reverse Stand-off Voltage: 5V
击穿电压Reverse Breakdown Voltage (Min.): 6V
漏电流Reverse Leakage Current: 0.5uA
钳位电压Clamping Voltage ( IPP=4A tp=8/20us ): 13V
结电容Junction Capacitance (VR=0V, f = 1MHz Between I/O pins): 0.6pF
固态硅雪崩技术
封装Package: SOT-523
