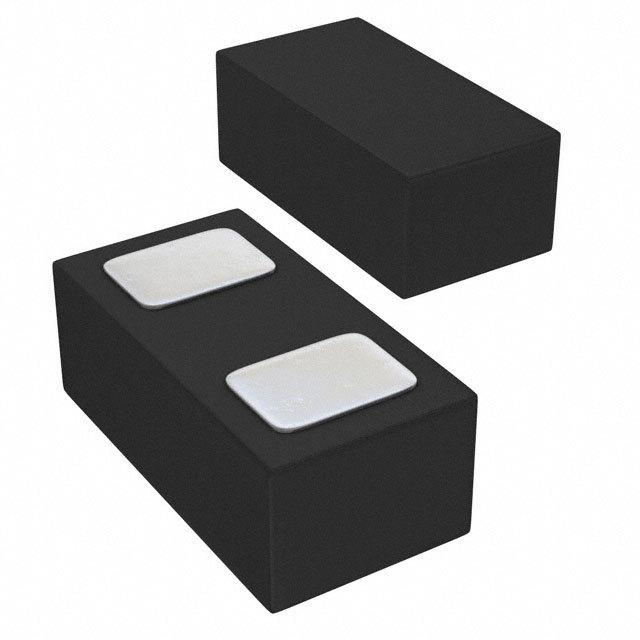

静电防护二极管DFN1006 封装
? 特性
1. 符合RoHS与无卤要求
2. 低电容
3. 低限制电压
4. 低漏流
5. 满足 61000-4-2 (ESD) 15~30KV (air), 10~30KV (contact)
? 用途
1. 手机与配件
2. 笔记本电脑, 服务器
3. PCI express, SATA, USB 2.0,DVI, 显示端口
4. 可携式装置
|
鼎先料号 |
最大反向 截止电压 |
击穿电压 |
反向漏电流 |
结电容 |
产品极性 单/双向 |
峰值脉冲 功率 |
峰值脉冲 电流 |
接触 放电 |
封装
|
|
VRWM (V) |
VBR (V) |
IR (uA) |
PF |
Uni/Bi (单/双) |
PPK (W) |
IPP (A) |
KV |
||
|
Max |
Min |
Typ |
|||||||
|
DC3311P0 |
3.3 |
5 |
0.2 |
5 |
Bi |
40 |
5 |
20 |
DFN0603 |
|
DC3321P0 |
3.3 |
5 |
0.2 |
|
Bi |
80 |
8 |
20 |
DFN0603 |
|
DC0521P0 |
3.3 |
6 |
0.2 |
20 |
Bi |
80 |
8 |
15 |
DFN0603 |
|
DL0521P0 |
5 |
6 |
0.2 |
0.26 |
Bi |
125 |
5 |
20 |
DFN0603 |
|
DC3301P1 |
3.3 |
5 |
0.2 |
|
Uni |
100 |
10 |
20 |
DFN0603 |
|
DC3321P1 |
3.3 |
3.5 |
0.2 |
12.5 |
Bi |
80 |
8 |
20 |
DFN0603 |
|
DL3321P0S |
3.3 |
3.5 |
0.2 |
1.4 |
Bi |
40 |
10 |
10 |
DFN0603 |
|
DC4581P1L |
4.5 |
4.8 |
0.2 |
35 |
Bi |
200 |
18 |
25 |
DFN1006-2 |
|
DC4581P1 |
4.5 |
4.8 |
0.2 |
60 |
Bi |
300 |
28 |
25 |
DFN1006-2 |
|
DC0501P1 |
5 |
6 |
0.2 |
60 |
Uni |
100 |
8 |
30 |
DFN1006-2 |
|
DC0511P1 |
5 |
6 |
0.2 |
5.5 |
Bi |
30 |
3 |
30 |
DFN1006-2 |
|
DC0521PZ |
5 |
6 |
0.2 |
|
Bi |
100 |
8 |
25 |
DFN1006-2 |
|
DC0521P1L |
5 |
6 |
0.2 |
|
Bi |
80 |
5 |
25 |
DFN1006-2 |
|
DL0521P1 |
5 |
6 |
0.2 |
0.3 |
Bi |
100 |
4 |
30 |
DFN1006-2 |
|
DL0501P1 |
5 |
6 |
0.2 |
0.8 |
Uni |
100 |
8 |
25 |
DFN1006-2 |
|
DC1201P1 |
12 |
13.3 |
0.2 |
55 |
Uni |
300 |
13 |
30 |
DFN1006-2 |
|
DC1211P1 |
12 |
13.3 |
0.2 |
35 |
Bi |
375 |
15 |
30 |
DFN1006-2 |
|
DC1221P1 |
12 |
13.3 |
0.2 |
30 |
Bi |
180 |
8 |
25 |
DFN1006-2 |
|
DC1231P1 |
12 |
13.3 |
0.2 |
60 |
Uni |
200 |
8 |
25 |
DFN1006-2 |
|
DC3601P1 |
36 |
38 |
0.2 |
30 |
Uni |
300 |
3 |
25 |
DFN1006-2 |
|
DC0521D5 |
5 |
6 |
0.2 |
35 |
Bi |
80 |
8 |
30 |
SOD523 |
