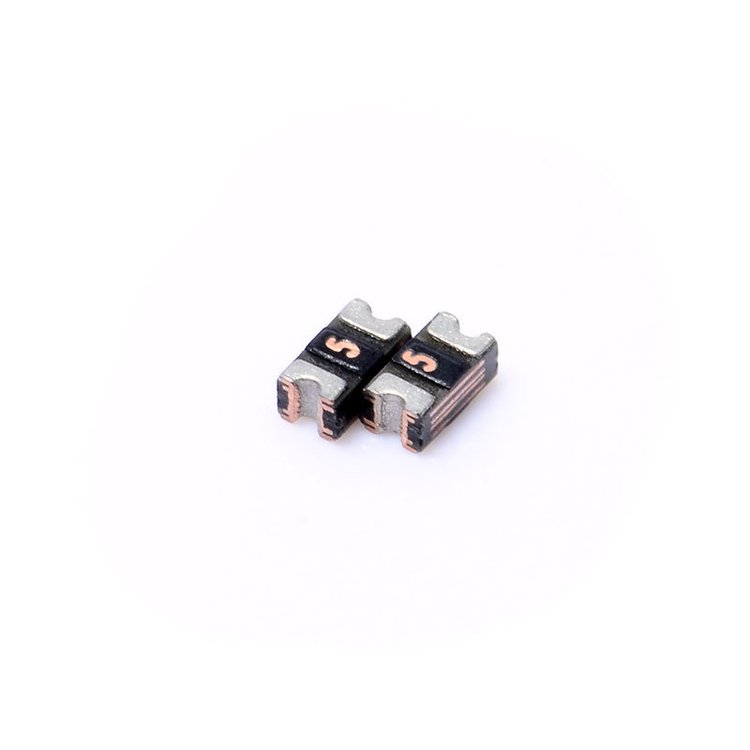

低阻自恢复保险丝SMD0805L系列PTC
特点
封装尺寸：0.08*0.05inch/2.0*1.2mm
应用范围：超低内阻，应用于智能穿戴、蓝牙、医疗、USB接口、电子烟、锂电保护等领域。
安装方式：表面贴装元件
工作电流：0.75A~8A
工作电压：6V
工作温度：-40℃~85℃
环保规范：无铅、无卤，符合RoHS和REACH标准
|
Part number |
Vmax (Vdc) |
Imax (A) |
Ihold @25°C (A) |
Itrip @25°C (A) |
Pd typ (W) |
Time to trip |
R @25°C |
||
|
Current |
Time |
Rimin |
R1max |
||||||
|
(A) |
(Sec) |
(W) |
(W) |
||||||
|
JK-SMD0805-075L |
6.0 |
50.0 |
0.75 |
1.5 |
0.7 |
8.0 |
1.0 |
0.020 |
0.160 |
|
JK-SMD0805-075L/12 |
12.0 |
50.0 |
0.75 |
1.5 |
0.7 |
8.0 |
1.0 |
0.020 |
0.160 |
|
JK-SMD0805-110L |
6.0 |
50.0 |
1.1 |
2.2 |
0.7 |
8.0 |
1.0 |
0.018 |
0.110 |
|
JK-SMD0805-110L/12 |
12.0 |
50.0 |
1.1 |
2.2 |
0.7 |
8.0 |
1.0 |
0.018 |
0.110 |
|
JK-SMD0805-125L |
6.0 |
50.0 |
1.25 |
2.5 |
0.7 |
8.0 |
1.0 |
0.016 |
0.100 |
|
JK-SMD0805-125L/12 |
12.0 |
50.0 |
1.25 |
2.5 |
0.7 |
8.0 |
1.0 |
0.016 |
0.100 |
|
JK-SMD0805-150L |
6.0 |
50.0 |
1.5 |
3.0 |
0.7 |
8.0 |
1.0 |
0.008 |
0.065 |
|
JK-SMD0805-150L/12 |
12.0 |
50.0 |
1.5 |
3.0 |
0.7 |
8.0 |
1.0 |
0.008 |
0.065 |
|
JK-SMD0805-175L |
6.0 |
50.0 |
1.75 |
3.5 |
0.7 |
8.75 |
2.0 |
0.008 |
0.060 |
|
JK-SMD0805-175L/12 |
12.0 |
50.0 |
1.75 |
3.5 |
0.7 |
8.75 |
2.0 |
0.008 |
0.060 |
|
JK-SMD0805-200L |
6.0 |
50.0 |
2.0 |
4.0 |
0.7 |
10.0 |
2.0 |
0.006 |
0.055 |
|
JK-SMD0805-200L/12 |
12.0 |
50.0 |
2.0 |
4.0 |
0.7 |
10.0 |
2.0 |
0.006 |
0.055 |
|
JK-SMD0805-260L |
6.0 |
50.0 |
2.6 |
5.2 |
0.7 |
13.0 |
2.0 |
0.003 |
0.035 |
|
JK-SMD0805-260L/12 |
12.0 |
50.0 |
2.6 |
5.2 |
0.7 |
13.0 |
2.0 |
0.003 |
0.035 |
|
JK-SMD0805-300L |
6.0 |
50.0 |
3.0 |
6.0 |
0.8 |
15.0 |
2.0 |
0.003 |
0.030 |
|
JK-SMD0805-300L/12 |
12.0 |
50.0 |
3.0 |
6.0 |
0.8 |
15.0 |
2.0 |
0.003 |
0.030 |
|
JK-SMD0805-350L |
6.0 |
50.0 |
3.5 |
7.0 |
0.8 |
17.5 |
2.0 |
0.003 |
0.020 |
|
JK-SMD0805-350L/12 |
12.0 |
50.0 |
3.5 |
7.0 |
0.8 |
17.5 |
2.0 |
0.003 |
0.020 |
|
JK-SMD0805-400L |
6.0 |
50.0 |
4.0 |
8.0 |
0.8 |
20.0 |
2.0 |
0.003 |
0.015 |
|
JK-SMD0805-400L/12 |
12.0 |
50.0 |
4.0 |
8.0 |
0.8 |
20.0 |
2.0 |
0.003 |
0.015 |
|
JK-SMD0805-450L |
6.0 |
50.0 |
4.5 |
9.0 |
0.8 |
22.5 |
2.0 |
0.003 |
0.010 |
|
JK-SMD0805-450L/12 |
12.0 |
50.0 |
4.5 |
9.0 |
0.8 |
22.5 |
2.0 |
0.003 |
0.010 |
