R097NS single came switch potentiometer audio/B10K - L15mm power amplifier RK097NS Manufacturer introduction

R097NS single came switch potentiometer audio/B10K - L15mm power amplifier RK097NS Data specification parameters

parameter list

technical parameter

调节

Package parameters

吸塑盒

Dimensions

9.5

Meet the standard

100

Other parameters

密封电位器

Product Atlas

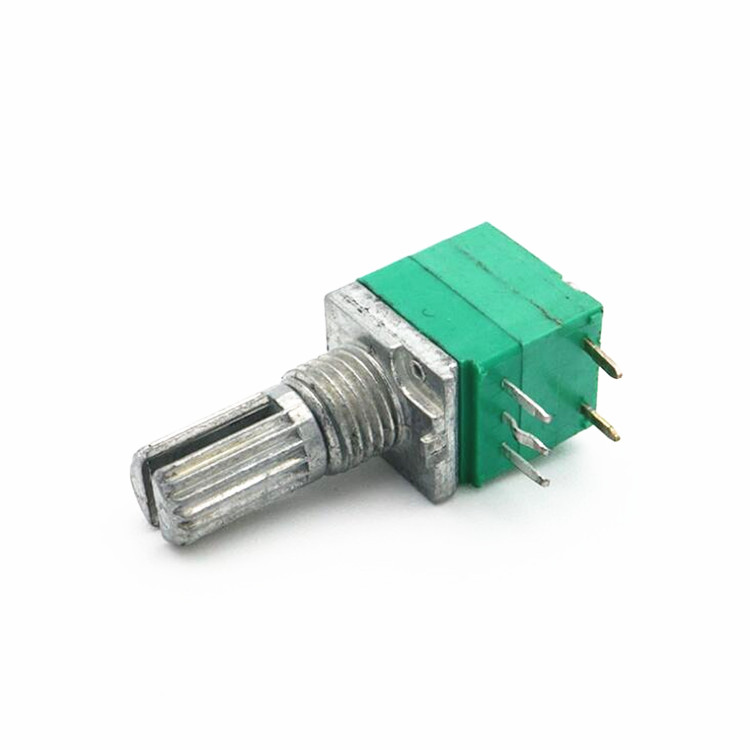

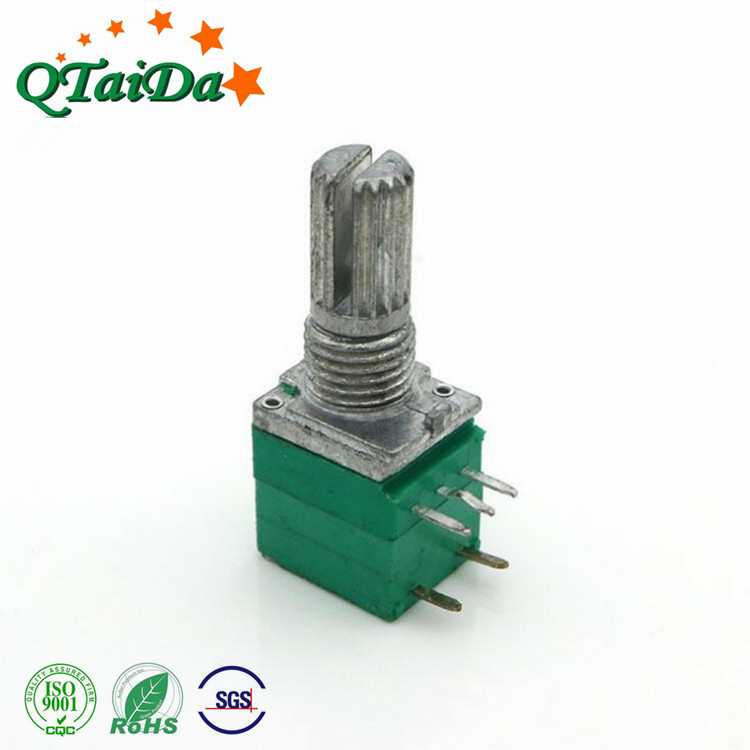

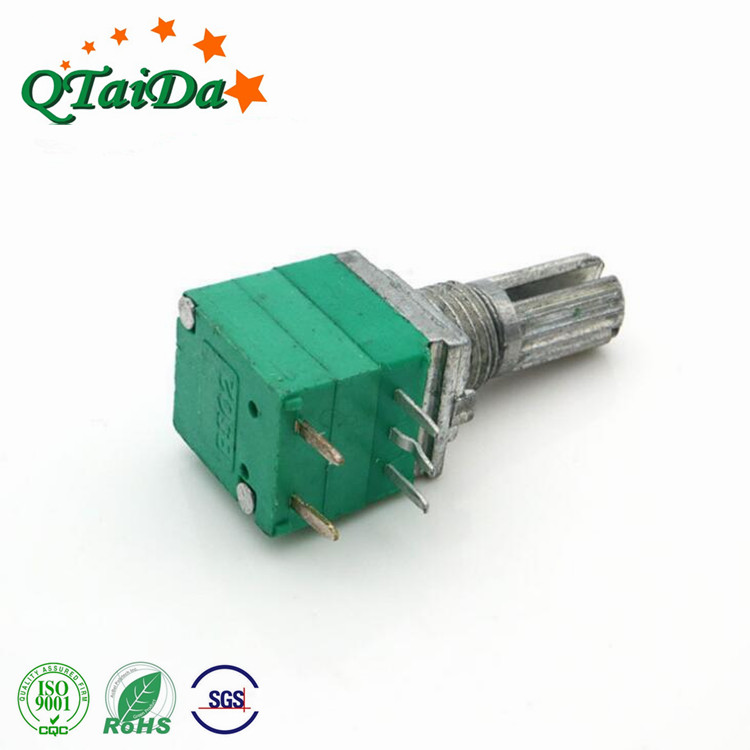

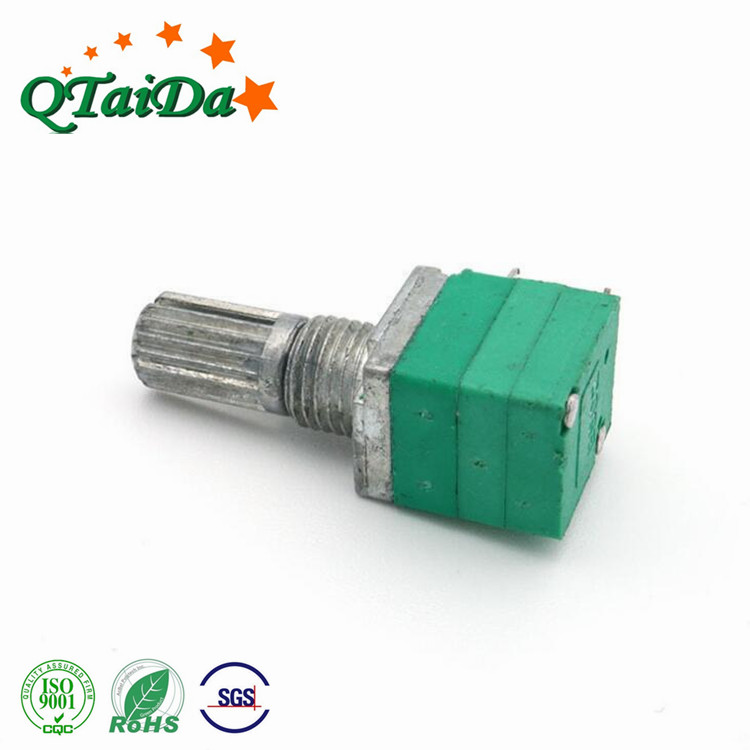

R097NS single came switch potentiometer audio/B10K - L15mm power amplifier RK097NS

R097NS single came switch potentiometer audio/B10K - L15mm power amplifieralbum

Product overview

全阻值 :500Ω-1MΩ
全阻值公差:±20%
阻抗特性型式:A,B,C,D
杂音:Less than 100mV at 20 mmc.
绝缘阻抗:More than 10MΩat DC 250V
耐电压:1 minute at AC 250V
残留阻值:Term.1~2:Less than 10Ω Term.2~3:Less than 10Ω
同步误差(双联):-40dB~0dB±3dB
额定电压
B线性:10mm,15mm:AC 100V 20mm,25mm:AC 200V 30mm:AC 250V
其它线性:10mm,15mm:AC 50V 20mm,25mm:AC 150V 30mm:AC 200V
额定功率(单联/双联)
B线性:10mm,15mm:0.05W/0.025W 20mm,25mm:0.1W/0.05W 30mm:0.2W/0.1W
其它线性:10mm,15mm:0.025W/0.012W 20mm,25mm:0.05W/0.025W 30mm:0.1W/0.05W
机械特性
作用力:5~200 gf.cm
中心脱出力:10~400 gf.cm
止动强度:3.0Kgf.cm Min(from the base level to a point of 2mm)
滑柄水平晃动量:2(2xL)/20mm Max.(L:Level length both sides)
水平推拉强度:3.0 Kgf Min. at 5sec.
耐久性能
旋转寿命:10000 Cycles

View all
